Ibanez AGP10 Acoustic Preamp + MCA53AC (Multi Clamp)

Beschreibung

Designed in collaboration with artists and professional sound engineers, the AGP10 is a stand-alone unit.
In contrast to “onboard” electronics, this approach preserves the guitar’s integrity,
both acoustically and structurally, while still providing the performer easy access for on-the-fly adjustments.

The AGP10 has a 5-band EQ for Bass, Middle, and Treble along with the regular Low Mid and High Mid controls.
The Low Mid control sonically shapes the guitar’s body resonance and single note depth.
The High Mid control is effective for tone adjustment of the high G, B,
and E treble strings. It provides a crispy tone when boosted, and a soft
tone when cut.



Feature
All-analog circuit design for acoustic sound, internal voltage boost for low noise and high headroom

Feature
5-band equalizer with Low Mid/High Mid control for wider range of EQ curve level adjustment in addition to the standard 3-band

Feature

Notch Filter and Phase Reverse switches with two modes of effective
bandwidth range and Q are provided for feedback countermeasures.

Feature
Low-noise, balanced XLR output jacks for output to mixers, etc.

Feature
Input level control for passive pickups and other low-power electric acoustics.

Controls
Bass/Low Mid/Middle/High Mid/Treble, Notch Freq., Notch Filter SW., Phase Reverse, Volume, Input Trim

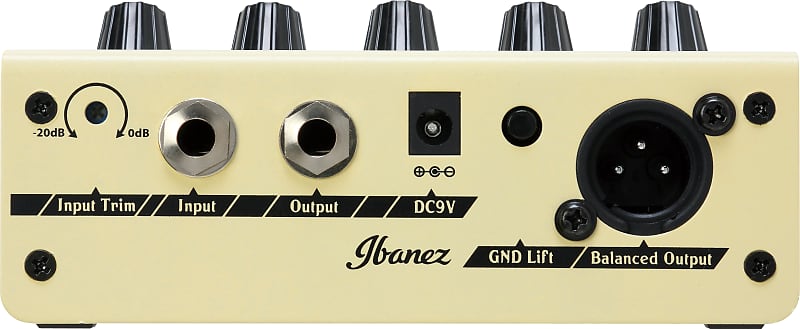

i/o’s
INPUT, OUTPUT, Balanced Output w/GND Lift SW

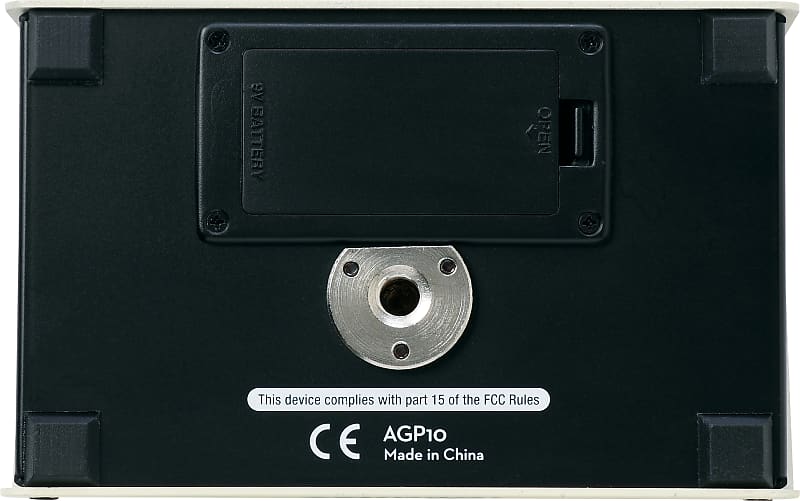

Use Time
Standard continuous use time when powered by 9V manganese dry cell batteries: approx. 20 hours

Size and weight

Lightweight and compact body with a flat size of less than A6 (137(W) x
90(H) x 60(D) mm) and a weight of 320g (excluding dry cell batteries)
