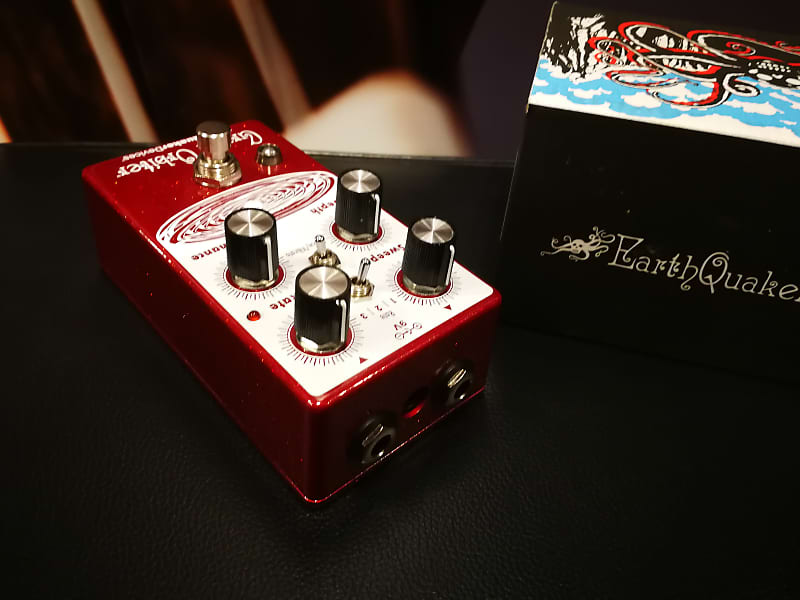

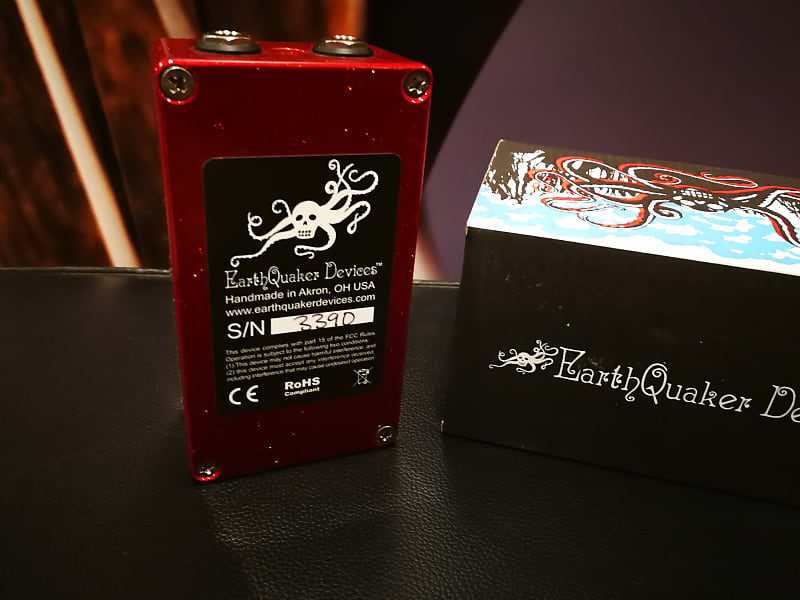

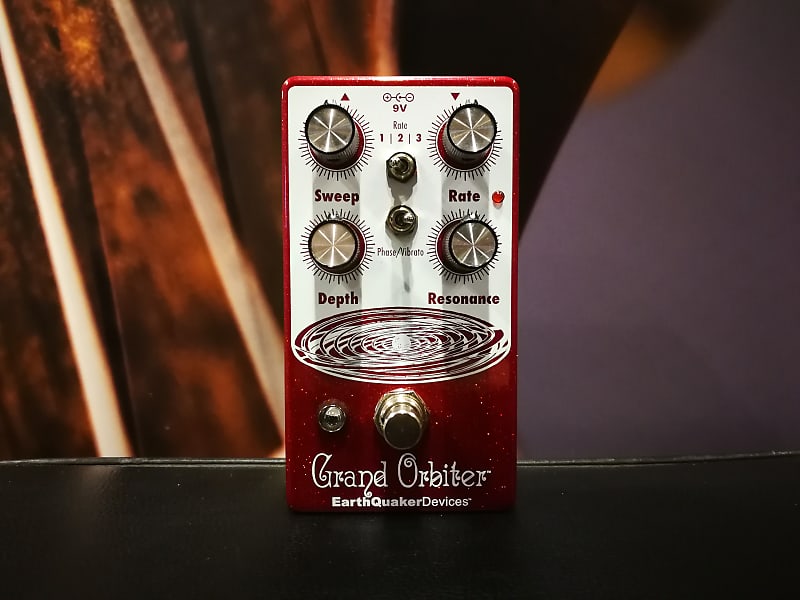

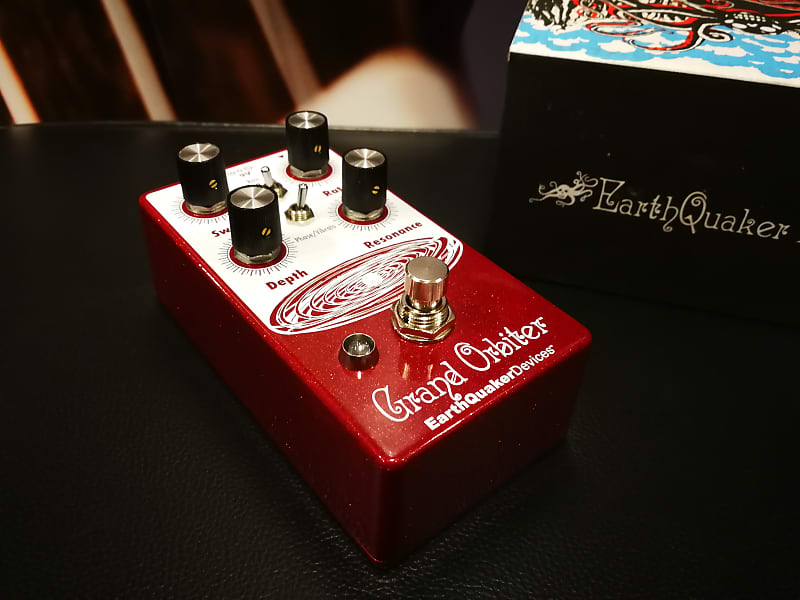

EarthQuaker Devices Grand Orbiter V3 – Phase Machine

Beschreibung

The Grand Orbiter is a four stage analog phaser that offers classic and unconventional phaser and vibrato sounds, it can go from stationary and resonant to fast and swirly. The Grand Orbiter can be turned from phaser to vibrato via a dedicated switch and features a three way toggle switch to select between the ranges of modulation. One of these ranges, kills the LFO and allows the Grand Orbiter to work as a fixed resonant filter. The three ranges offer the following modes: Slow Sweep, Fixed Resonance and Fast Sweep. The Rate control allows to fine tune the speed of the LFO in each one of the modes. It can be activated in standard latching operation or in momentary operation, by just holding the footswitch down for as long as you’d use the effect. The Grand Orbiter is a True Bypass pedal and is hand made in Ohio, USA. The Grand Orbiter V3 uses silent relay-based soft touch switching. Audio will not pass without power.
– 4 stage phaser pedal
– switchable from phaser to vibrato
– LFO kill switch enables the device to work as a resonant filter
– 3 ranges of modulation
– footswitch works as momentary or latching switch
– all analog
– true bypass
– 4 controls for Resonance, Rate, Depth and Sweep
– 2 toggle switches for Rate and Phase/Vibrato
– silent relay-based soft touch switching
– bypass footswitch
– status LED
– metal housing
– 6.3 mm mono IN/OUT jacks
– power supply optional 9V DC adapter 2.1 mm x 5.5 mm barrel plug, polarity (-) center
– battery operation not supported
– dimensions (D x W x H) 117 x 64 x 57 mm
– current draw 10 mA
– hand made in USA
